ID: 23612
Description

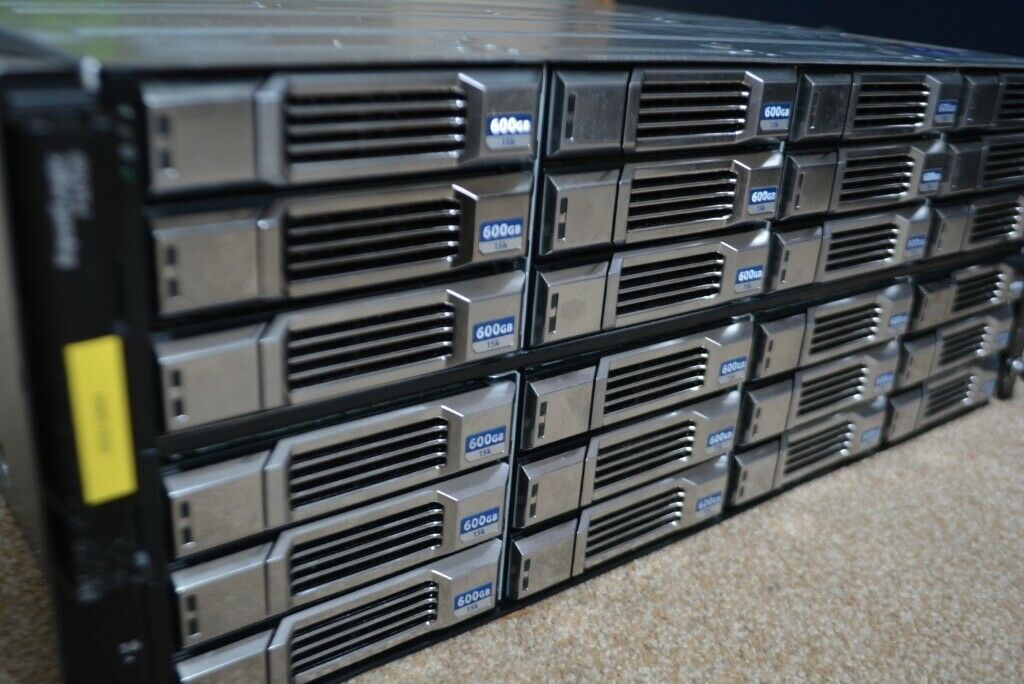

Dell EqualLogic PS6100X Virtualized iSCSI SAN Storage Array
With 24 x 600GB SAS 15k EqualLogic hot plug drives
In good condition and full working order
Included
1 x Dell EqualLogic PS6100e Virtualized iSCSI SAN Storage Array
2 x Control Module 11 07V250
Each With:
4 x 1000BASE-T Network Interface Ports
1 x 100Base-TX Dedicated Management Port
4Gb Non-volatile Memory
Support For RAID 5,6,10 And 50
24 x Dell EqualLogic 600GB 15k SAS hot plug drives
2 x 1080w Power Supplies
1 x Front Bezel
Built to make storage simple
Master your data-hungry tasks with EqualLogic PS6100E?high-capacity performance with easy, flexible management for highly consolidated mid-tier storage environments.
Designed to scale with your business
Fulfill your high-capacity needs with the PS6100E GbE internet SCSI (iSCSI) array, a Dell? Fluid Data? solution with a virtualized scale-out architecture that delivers enhanced storage performance and reliability that is easy to manage.
Help eliminate downtime and performance penalties with smooth, incremental SAN expansion.
Grow your virtual storage alongside your virtual server growth.
Change hardware without disruption.
Add or remove arrays at will, according to policy, age, application or business needs.
Easily mix new disk or network technologies in the SAN.
Move volumes (databases/VMs) online between any pool or disk resources.
Avoid forklift upgrades or data-in-place migrations that cost time and money.
Automatically balance loads across disks and multiple arrays in a pool.
Help eliminate manual redistributing of capacity or application workloads (downtime and services costs).
Choose your array
Build capacity for your data center using PS6100E arrays. With 24 NL-SAS 3.5" HDDs and up to 96 terabytes of capacity in a 4U chassis, the PS6100E combines maximized capacity and optimized scalability with simple, flexible management.
The PS6100 Series family features:
Dual controllers designed for built-in redundancy
Four GbE ports per controller
Dedicated 10/100 management port per controller
6G SAS backplane
Options for 12 or 24 hot-swappable drives
3.5" 7,200 rpm NL-SAS drives available in 1TB, 2TB, 3TB or 4TB
Cache-to-flash memory de-staging
Peer-scaling architecture that scales performance linearly
Vertical Port Failover, designed to enable you to maintain full bandwidth if a networking port fails
Group Manager, which integrates all management into one console for both file- and block-storage protocols
Array firmware and host software with no additional licenses or fees
Enhanced security with self-encrypting drives (SED)
Grow confidently with advanced Array Software features
Meet your current storage needs and future data management requirements with EqualLogic? Array Software.
Synchronous Replication: Maintain two identical copies of a volume across two different storage pools in the same PS Series for real-time data protection.
Volume Unmap: Recover unused space previously allocated to thin-provisioned volumes for better storage capacity utilization and cost-effectiveness.
Snapshot Space Borrowing: Temporarily increase the available snapshot space for a volume by borrowing from the snapshot reserve of other volumes and pool-free space, improving your capacity management.
Specifications:
Storage Controllers
Dual controllers, each with 4GB memory for PS-series firmware. Each controller provides cache to flash for data protection.
Hard Disk Drives
Twenty-four (24) NL-SAS hot-pluggable hard disk drives
Drive Capacities
3.5" 2Tb 7,200 RPM NL-SAS drives
System Capacities
48 Tb using twenty-four (24) 2 Tb NL-SAS disk drives
Technical Highlights
Volumes
Up to 1,024
Snapshots
512 per volume / up to 10,000 total per group
Volume Connections
Up to 1,024
Host Protocol
Any standards-compliant iSCSI initiator
Operating Systems Supported
Windows? 2000 Server, Windows Server? 2003, Windows Server? 2008, including Hyper-V?, Windows Vista?, Windows Server? 2008 R2 including Hyper-V?, Windows XP?, Red Hat? Enterprise Linux?, SUSE? Linux? Enterprise, Sun? Solaris?, IBM? AIX?, HP-UX, Mac OS? X, VMware? ESX Server 3 / 3.5 / 4 / 4.1 / 5, ESXi 3.5 / 4 / 4.1 / 5, Citrix? XenServer?, Novell? NetWare?
RAID Support
RAID 5, RAID 6, RAID 10, and RAID 50
Network Interfaces
Four (4) copper per controller + One (1) dedicated management port
TCP Network Support
IPv4, IPv6 core support
Expansion Option
Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. Up to 16 total members per group
Reliability
Vertical port sharing
Redundant, hot-swappable controllers; power supplies / cooling fans, and hot-swappable disks
Individual disk drive slot power control
Cache-to-flash
Enclosure Monitoring System
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including Active Directory, LDAP, or RADIUS support
Notification Methods
SNMP traps, e-mail, syslog
Power
AC voltage: 100-240 VAC ?10% single phase 1080W (max, total), +5V up to 155W; +12V up to 924W;+5Vsb up to 10W
Frequency: 50/60 Hz
Power factor: 0.98 (minimum)
Power supplies: Dual 1080 W
Chassis
Height: 4U / 175 mm (6.87 inches)
Width: 446 mm (17.57 inches)
Depth: 580 mm (22.83 inches)
Weight: 44.5 kg (97.9 lbs)
Rack Support
ReadyRails? II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Environmental Operating Conditions
Temperature range: 5? to 40?C (41? to 104?F)
Storage temperature: ?40? to 65?C (?40? to 149?F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1?F/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation
of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4: <=7.2 bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985
Regulatory
Regulatory Model: E05J
Regulatory Type: E05J001
